My article was posted on Slashdot!

Friday I wrote about a court ruling in an interesting case, and later that day it was posted on the main page of Slashdot.

Slashdot is a technology-related news website that I've been reading for many years. It's not as influential as it once was, but it's cool nevertheless to see my article linked to from such a big site.

Slashdot is famous for the so-called "Slashdot effect", where a large influx on readers brings down the performance of a website. My site is pretty well configured, and has strong caching for anonymous users, so it dealt with the spike just fine. As of Sunday evening the article has been read about 6,300 times.

I took Friday off from work and we spent a long weekend in DC. Went to the National Gallery of Art, where we saw the exhibition of Gabriel Metsu's work.

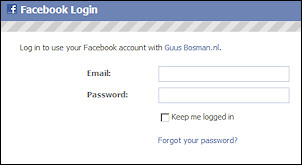

You can now log in to Guus Bosman.nl using your Facebook.com account.

This means you have one less password to remember!

The old method will also continue to work.

Today I upgraded the website to Drupal 6.

The upgrade went smooth and most parts of the website have been converted. The only thing remaining is the address book. This requires some extra work and hopefully I'll get to that Sunday or Monday, which is a day off, Labor Day.

The visible changes between Drupal 5 and Drupal 6 are pretty small, but things have improved behind the scenes. If you see anything that doesn't work right, or something is missing, please let me know.

The next few articles will be available for registered users only.

This means those articles will not show up in the RSS feed. This is a temporary thing.

Please log in at http://www.guusbosman.nl to read those articles.

For the address book on our site I used CiviCRM, an open source CRM system. I recently upgraded from CiviCRM 1.9 to 2.0, and since the APIs changed I had to update the block with birthdays that I wrote two years ago.

The primary change in CiviCRM 2 that impacted the block was the merge of civicrm_individual into civicrm_contact, a sensible schema change. Secondly, the public API's method calls are now organized in smaller modules and were renamed.

Here's the updated birthday block for CiviCRM 2.0:

<?php
// Check if CiviCRM is installed here.
if (!module_exists('civicrm')) return false;

// Initialization call is required to use CiviCRM APIs.
civicrm_initialize(true);
require_once('api/v2/Contact.php');

$select = "SELECT id, birth_date, CONCAT(((RIGHT(birth_date,5)
< RIGHT(CURRENT_DATE,5)) + YEAR(CURRENT_DATE)), RIGHT(birth_date,6)) AS bday,
concat(concat(month(birth_date), '/'), day(birth_date)) as displaydate,
(TO_DAYS(CONCAT(((RIGHT(birth_date,5) < RIGHT(CURRENT_DATE,5)) + YEAR(CURRENT_DATE)),
RIGHT(birth_date,6))) - TO_DAYS(CURRENT_DATE)) AS toBday FROM civicrm_contact WHERE
(TO_DAYS(CONCAT(((RIGHT(birth_date,5) < RIGHT(CURRENT_DATE,5)) + YEAR(CURRENT_DATE)),
RIGHT(birth_date,6))) - TO_DAYS(CURRENT_DATE) < 7) ORDER BY bday, RIGHT(birth_date,5);";

$query  = $select;
$params = array( );

$dao =& CRM_Core_DAO::executeQuery( $query, $params );

echo "<div class=\"item-list\"><ul>\n";
while ( $dao->fetch( ) ) {

// Contact API returns contact info

$params = array('contact_id' => $dao->id);
$contact = &civicrm_contact_get( $params );

if ( civicrm_error( $contact ) ) {
    echo $contact['error_message'];
}

echo "<li><a href=\"/civicrm/contact/view?reset=1&cid=" . $dao->id . "\">" . $contact['display_name'] .
"</a>, " . $dao->displaydate;

echo "</li>\n";

}
echo "</div></ul>\n";

?>

While developing this database query was useful; it disables the block.

update blocks set status = 0 where title = 'Birthdays';

I just upgraded the server to OpenBSD 4.5.

Upgrade was a breeze, as always. I didn't use sysmerge this time, and simply patching worked fine.

Small change in procedure; no reboot into the new kernel was necessary until all userland components were also upgraded.

You may have noticed that the website has been really slow in the last month or two. Finally, we figured out what the problem was and I'm happy to say that the speed is back to normal.

The problem started two months ago when a new DSL modem was installed and the website started to work really slow. Jaap and I have done a lot of research to see what happened, including re-wiring lots of cables and switches and network cards... thank you so much! The first suspect was the new modem, a "Fritzbox", but all the settings looked fine and there was nothing in the log files. Traceroute told us that performance was quite decent. Thanks also to Ben from OpenNMS for your help.

In the end, it turned out to be unrelated to cables -- instead, there was a configuration setting on the server ("DNS servers") that needed to be updated. Once that was done, performance was back to normal. A great relief.

Before (41 seconds for the main page):

[guus@server ~]# curl http://www.guusbosman.nl > /dev/null
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 23813    0 23813    0     0    579      0 --:--:--  0:00:41 --:--:--  6034

After (less then a second for the main page):

[guus@server ~]# curl http://www.guusbosman.nl > /dev/null
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 23813    0 23813    0     0  36469      0 --:--:-- --:--:-- --:--:-- 69431

The quick fix (before updating /etc/resolv.conf):

#
# HostnameLookups: Log the names of clients or just their IP addresses
# e.g., www.apache.org (on) or 204.62.129.132 (off).
# The default is off because it'd be overall better for the net if people
# had to knowingly turn this feature on, since enabling it means that
# each client request will result in AT LEAST one lookup request to the
# nameserver.
#
HostnameLookups Off

One of the modules on my website, Book Review, is old and hasn't been updated since September 2007. Drupal has a great version/stability tracking system, and it's clear that this module isn't maintained anymore. Over time I want to upgrade my website to Drupal 6 so it's time to move away from unsupported modules.

On a technical level a book review is just a couple of text fields (author, ISBN number) combined with the standard Drupal text fields body and title. That makes it a great candidate for creating of a custom Node using Drupal's Content Creation Kit (CCK).

Here is how I converted from module Book Review CCK using the excellent node_import module and custom MySQL statements to export book reviews to a Comma Separated Value (CSV) file.

I'm using Book Review version 5.x-1.x-dev and CCK version 5.x-1.10. For completeness, my PHP version is 5.2.6 and I'm running MySQL 5.0.15a on OpenBSD.

The first step is to create a new content type. Go to /admin/content/types/add and create a new content type. I'd recommend to use the name "Book review" and type "book_review" (notice the underscore). The other field names and options are matter of personal preference and don't matter for the conversion. The Name and Type fields need to be unique, so on my system I renamed the existing (module's) content type to "Book review old".

I did not use all fields of the book review module. Here are the fields that I used:

Title - the title of the book. This will be mapped to the title field of the CCK node.
Review - the actual review. This will be mapped to the 'body' of the CCK node.
Date - the date of the review. This will be mapped to the date field of the CCK node.
Author - author of the book.
ISBN - ISBN of the book
Cover picture - a link to an image file on my site. Example: "/images/books/otherpeoplestrades.jpg".
In addition we'll port a couple of other Drupal internal fields such as "promote to frontpage", "comment settings etc".
Old_nid - For the migration of our comments, we'll add a tempory field.

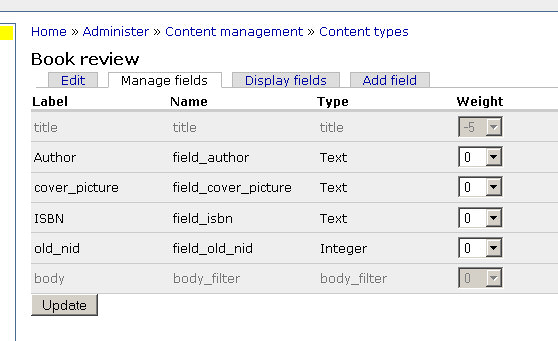

The fields "Title", "Review" and "Date" are part of the standard Drupal Node. Let's create the Author, ISBN and Cover Picture fields to the CCK node.

For simplicity I'm assuming each bookreview has 1 author (table bookreview_authors). I don't have anything in bookreview_links.

mysql>SELECT 'nid','status','created','changed','comment', 'promote','moderate', 'sticky',
'uid','booktitle','author', 'cover', 'isbn', 'review' UNION SELECT bookreview.nid, status,
created, changed, comment, promote, moderate, sticky, uid, booktitle, author, cover, isbn,
review INTO OUTFILE '/tmp/export.csv' FIELDS TERMINATED BY ',' ENCLOSED BY '"' ESCAPED BY '\\'
LINES TERMINATED BY '\n' FROM (bookreview LEFT JOIN bookreview_authors ON bookreview.nid = bookreview_authors.nid)
INNER JOIN node ON bookreview.nid = node.nid;

This will result in a 'export.csv' file in your /tmp directory, and contains the content of all your bookreviews.

To clean up the file:

sed 's/\\N//g' export.csv > export.tmp
perl -p -e 's/\\\n/<br \/>\n/g' export.tmp > export.tmp2
tr -d '\r' < export.tmp2 > export.csv

This will create a file with a structure like this:

"nid","status","created","changed","comment","promote","moderate","sticky","uid","booktitle",
"author","cover","isbn","review"

"1755","1","1036105200","1036105200","2","0","0","0","24","Ooggetuigen van de vaderlandse geschiedenis",
,"http://www.guusbosman.nl/images/books/ooggetuigen.jpg","","A compilation of articles ... "

Now, install the node_import module (http://drupal.org/project/node_import), activate it and go to /admin/content/node_import. Select your CSV file, choose "Book review" for Type. Map all the fields appropriately; there's no need to customize the Options. Here's the mapping I used:

nid

old_nid_value (field_old_nid)

status

Node: Published

created

Node: Authored on

changed

Node: Last updated on

comment

Node: Comment options

promote

Node: Promoted to frontpage

moderate

Node: In moderation queue

sticky

Node: Sticky at top of lists

uid

Node: Authored by

booktitle

Title

author

Author value (field_author)

cover

cover_picture value (field_cover_picture)

isbn

ISBN value (field_isbn)

review

Body

Now you'll have 2 versions of each of your book reviews, one of the old 'bookreview' type, and one of the new 'book_review' type. The last thing remaining is to migrate any comments.

Here's how you can check if you have any comments assigned to book reviews:

SELECT node.type, node.title, node_comment_statistics.comment_count
FROM node INNER JOIN node_comment_statistics ON node.nid = node_comment_statistics.nid
WHERE (((node.type)="bookreview") AND ((node_comment_statistics.comment_count)>0));

This is how you see what the mapping from the old nid to the new nid is:

SELECT field_old_nid_value AS old, content_type_book_review.nid AS new FROM comments, content_type_book_review
WHERE comments.nid = content_type_book_review.field_old_nid_value;

For each combination, do the following: (I had only 3 comments in my database so I didn't feel like automating this completely. You may want to script this if you have more than a trivial amount of comments).

UPDATE node_comment_statistics AS a JOIN node_comment_statistics AS b ON (a.nid=2843 AND b.nid=1790)
JOIN node_comment_statistics AS c ON (c.nid=a.nid) SET a.nid=-a.nid,b.nid=2843,c.nid=1790;
UPDATE comments set nid = 2840 WHERE nid = 1790;

In the example above 2843 is the new nid for the old 1790 nid.

After this, you're essentially done with the migration; all you have to do is update your Views appropriately. You can now delete the old "Book review Old" nodes, and over time you can delete the old_nid column from "Book review".

Notes & suggestions for improvements:

- The newly created nodes may use '<br />' to create line breaks. Make sure that your HTML filter allows this for the Input format that you selected for Book Reviews
- If you care about tracking how often an article is read, you'd need to update table node_counter manually
- It would be good to automate the comment conversion.
- This conversion doesn't work very nicely for non-ASCII characters in the author or title field (body field is fine).

I upgraded the server to OpenBSD 4.4 yesterday.

They now have a sysmerge tool that helps in upgrading the /etc directory. It worked well, but I think it's somewhat overkill for my simple system. Using their patch files for /etc has always worked in the past, and I think I'll stick with that next time.

The website has been off-line for about 72 hours, due to an internet provider outage in the Netherlands.

Things obviously are now working again; thanks Jaap and Mieke for your help with getting the system back up and thank you readers, for your patience.
